OUTPOST™
HYBRID GENERATORS


The Outpost™ Hybrid Generator (OHG) – available in Hybrid DC
and AC variants – offers exceptional power density in a lightweight,
portable design with built-in versatility. Our solutions deliver greater
flexibility and endurance for warfighters at the tactical edge.

OUTPOST™
HYBRID GENERATORS


The Outpost™ Hybrid Generator (OHG) – available in Hybrid DC
and AC variants – offers exceptional power density in a lightweight,
portable design with built-in versatility. Our solutions deliver greater flexibility and endurance for warfighters at the tactical edge.

AT A GLANCE

PRECISION IS RELIABILITY

Engineered and precision-manufactured in the U.S., the OHG exceeds military reliability testing standards.

USER EXPERIENCE

Recognizing that simplicity is paramount in high-stress environments, the OHG features an intuitive user interface, making the OHG easy-to-operate and allowing warfighters to focus on their mission.

MOBILITY

Portable and powerful, our generators can be lifted by two warfighters and fit in tactical vehicles like the Joint Light Tactical Vehicle (JLTV), while leaving room for a fully combat-loaded pack.

FLEXIBILITY

The OHGs are inherently versatile, ensuring reliable power under diverse conditions. Fueling options include jet fuel, and all other military, and most commercial, diesel fuels. Plug and play solar battery maintenance, battery capacity expansion, and external jump start, cold start, and manual start options ensure reliable power under diverse conditions.

ADAPTABILITY

Our modular design, with autonomous hybrid controls, CANBus communication and system management, enables both hands-off and system-integrated spot power and battery charging, allowing warfighters to seamlessly configure and adapt their power systems to meet the specific demands of any mission, in any environment.

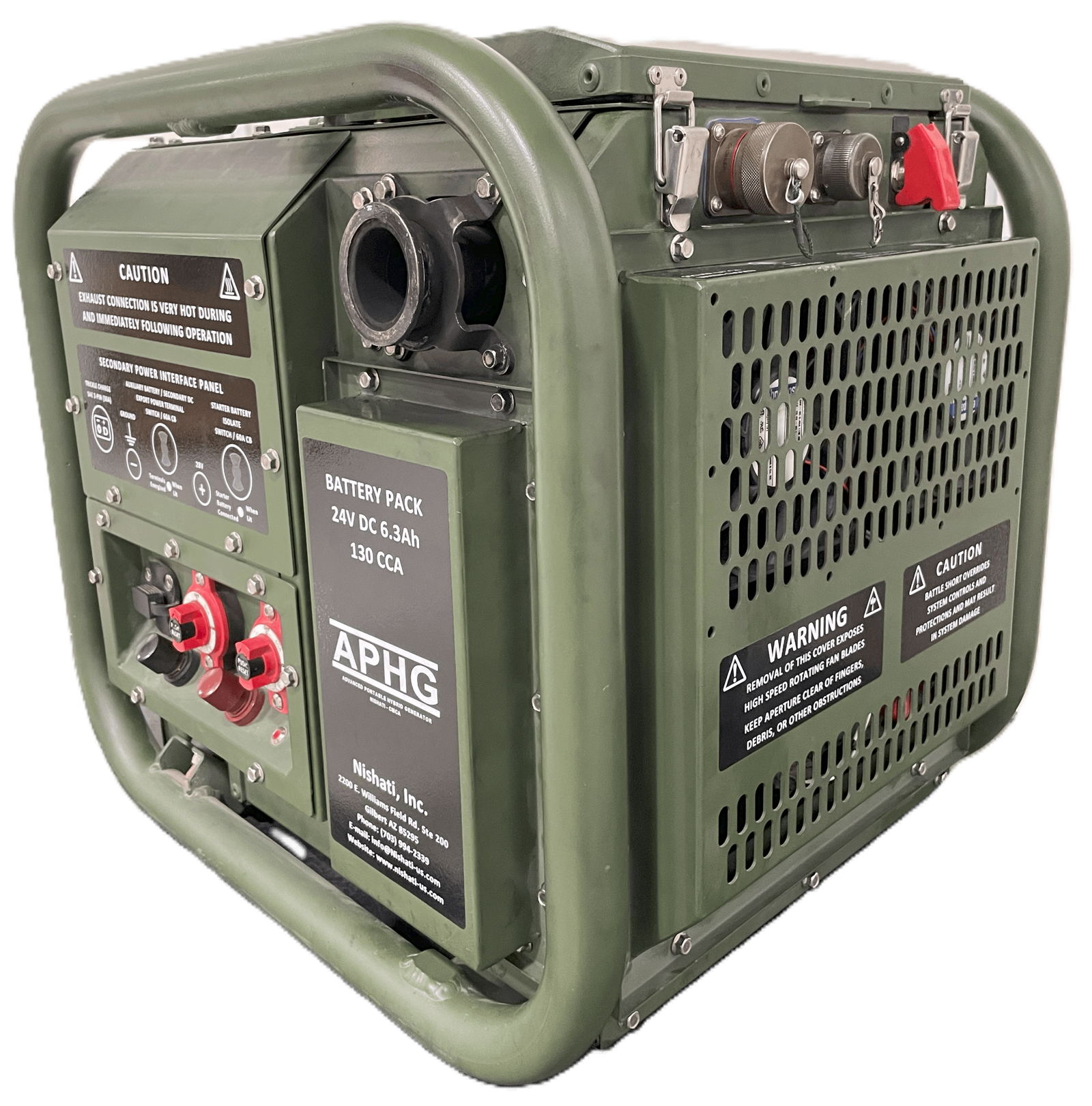

OUTPOST™ HYBRID GENERATOR (OHG 2000-DC)

Outpost™ Hybrid Generator OHG 2000-DC
Power Output
2kW
Remote Comms
CANBus Data (2-way), Autonomous Hybrid Control, 5V TTL and CANBus External Hybrid Control / Remote Start and Stop
Connections In
NATO STANAG 4074 (24-28V DC Jump Start), SAE 2-Pin 24V DC Trickle Charge, M6 Post Terminals (24-28.5V DC / 60A), 5V TTL / CANBus, RJ45 Programming Port
Connections Out
NATO STANAG 4074 (28.5V DC / 80A), M8 Post Terminals (24-28.5V DC / 60A)
Weight
127.4 lbs (Dry) / 129 lbs (Wet)
Dimensions
19.69"L x 15.75"W x 17.72"H
FACT SHEET

OUTPOST™ HYBRID GENERATOR (OHG 2000-AC)

Outpost™ Hybrid Generator OHG 2000-AC
Power Output
2kVA
Remote Comms
CANBus Data (2-way), 5V TTL and CANBus External Hybrid Control/Remote Start and Stop
Connections In
M8 Post Terminals (24-28.5V DC / 60A), 24V DC Trickle Charge, 5V TTL / CANBus, RJ45 Programming Port
Connections Out
120V/60Hz (20A) AC (3kVA 230V/50Hz option available), AC Synchronization, CANBus
Weight
132.3 lbs.
Dimensions
19.69"L x 15.75"W x 17.72"H
FACT SHEET
